PU film, also known as polyurethane film, is a versatile and widely used material in various industries. As a leading PU film supplier, I'm excited to share with you the detailed process of how PU film is manufactured. This blog will take you through each step, from the raw materials to the final product, providing a comprehensive understanding of the production journey of PU film.
Raw Materials Selection
The first and most crucial step in manufacturing PU film is the selection of high - quality raw materials. Polyurethane is a polymer composed of organic units joined by carbamate (urethane) links. The main raw materials for PU film production are polyols and isocyanates.
Polyols are long - chain molecules with multiple hydroxyl groups. They can be classified into two main types: polyether polyols and polyester polyols. Polyether polyols offer excellent hydrolysis resistance, flexibility, and low - temperature performance. They are commonly used in applications where the film needs to withstand harsh environmental conditions, such as outdoor protective films. On the other hand, polyester polyols provide good mechanical properties, high hardness, and abrasion resistance, making them suitable for applications like leather substitutes and industrial coatings.
Isocyanates are highly reactive compounds that react with polyols to form the polyurethane polymer. The most commonly used isocyanates in PU film production are toluene diisocyanate (TDI) and diphenylmethane diisocyanate (MDI). TDI is a liquid at room temperature and is known for its fast reaction rate, which is suitable for high - speed production processes. MDI, on the other hand, has better thermal stability and mechanical properties, and it is often used in the production of high - performance PU films.
In addition to polyols and isocyanates, various additives are also incorporated into the raw material mixture to enhance the properties of the PU film. These additives may include catalysts, which accelerate the reaction between polyols and isocyanates; antioxidants, which prevent the film from oxidation and degradation over time; UV stabilizers, which protect the film from the harmful effects of ultraviolet radiation; and colorants, which give the film the desired color.
Polymerization
Once the raw materials are selected, the polymerization process begins. Polymerization is the chemical reaction in which the polyols and isocyanates react to form the polyurethane polymer. There are two main methods of polymerization for PU film production: the one - shot method and the prepolymer method.
The one - shot method involves mixing all the raw materials, including polyols, isocyanates, and additives, together in one step and allowing the reaction to occur immediately. This method is relatively simple and cost - effective, but it requires precise control of the reaction conditions, such as temperature, pressure, and mixing speed, to ensure a uniform and high - quality polymer.
The prepolymer method, on the other hand, involves two steps. First, a prepolymer is formed by reacting a part of the polyols with an excess of isocyanates. The prepolymer has a lower viscosity and is easier to handle. In the second step, the remaining polyols and additives are added to the prepolymer, and the reaction is completed. The prepolymer method allows for better control of the reaction process and can produce PU polymers with more consistent properties.
During the polymerization process, the reaction mixture is usually heated and stirred continuously to ensure thorough mixing and complete reaction. The reaction temperature and time are carefully controlled according to the type of raw materials and the desired properties of the PU film.
Film Formation
After the polymerization process, the resulting polyurethane polymer is in a liquid or semi - liquid state. The next step is to form the polymer into a film. There are several methods for film formation, including casting, extrusion, and calendering.
Casting: Casting is one of the most common methods for producing PU film. In the casting process, the liquid polyurethane polymer is poured onto a flat surface, such as a conveyor belt or a release liner. The thickness of the film is controlled by adjusting the gap between a doctor blade and the surface. As the polymer is spread out, it gradually solidifies and forms a film. Casting can produce high - quality films with a smooth surface and uniform thickness. It is often used for the production of thin and transparent PU films, such as PU Transparent FILM.
Extrusion: Extrusion is another widely used method for PU film production. In this process, the polyurethane polymer is melted and forced through a die to form a continuous film. The die can be designed to produce films of different shapes and sizes. Extrusion allows for high - speed production and can produce films with a variety of thicknesses. It is suitable for the production of thick and strong PU films, such as those used in industrial applications.

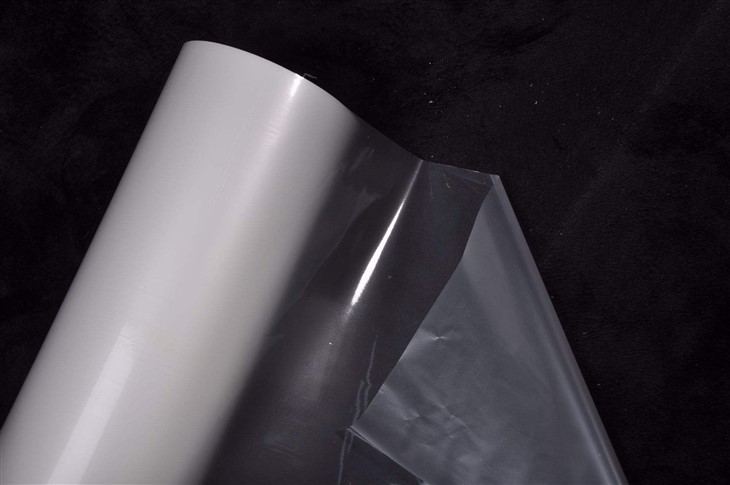

Calendering: Calendering is a process in which the polyurethane polymer is passed between a series of heated rolls to form a film. The rolls apply pressure and heat to the polymer, which helps to align the polymer molecules and improve the mechanical properties of the film. Calendering can produce films with a high degree of smoothness and gloss. It is often used for the production of PU films with a leather - like appearance, such as Pu - Nylon - Film.
Post - Treatment
After the film is formed, post - treatment processes are often carried out to further improve the properties of the PU film. These post - treatment processes may include annealing, surface treatment, and lamination.
Annealing: Annealing is a heat - treatment process in which the PU film is heated to a specific temperature and then slowly cooled. This process helps to relieve internal stresses in the film, improve its dimensional stability, and enhance its mechanical properties. Annealing can also improve the transparency and gloss of the film.
Surface Treatment: Surface treatment is used to modify the surface properties of the PU film. This can include treatments such as corona treatment, which increases the surface energy of the film and improves its adhesion to other materials; coating, which can provide additional protection, such as scratch resistance or water repellency; and embossing, which can give the film a specific texture or pattern.
Lamination: Lamination is the process of bonding two or more layers of materials together. In the case of PU film, it can be laminated with other films, fabrics, or substrates to enhance its performance. For example, a PU film can be laminated with a nylon fabric to improve its strength and durability, or it can be laminated with a breathable membrane to create a waterproof and breathable film.
Quality Control
Quality control is an essential part of the PU film manufacturing process. At every step of production, strict quality control measures are implemented to ensure that the final product meets the required standards. This includes testing the raw materials for purity and quality, monitoring the polymerization process to ensure the correct reaction conditions, and inspecting the finished films for properties such as thickness, strength, transparency, and adhesion.
Common testing methods for PU film include tensile strength testing, which measures the maximum amount of stress the film can withstand before breaking; tear strength testing, which evaluates the film's resistance to tearing; and optical clarity testing, which measures the transparency and haze of the film. These tests ensure that the PU film meets the specific requirements of different applications.
Application and Conclusion
PU films have a wide range of applications in various industries, including automotive, textile, medical, and packaging. In the automotive industry, PU films are used for interior trim, upholstery, and protective coatings. In the textile industry, they are used for waterproof and breathable fabrics, leather substitutes, and garment laminates. In the medical field, PU films are used for wound dressings, surgical drapes, and medical device components. In the packaging industry, they are used for food packaging, flexible packaging, and protective packaging.
As a PU film supplier, we are committed to providing high - quality PU films that meet the diverse needs of our customers. Through advanced manufacturing processes and strict quality control, we ensure that our products have excellent performance and reliability.
If you are interested in purchasing PU films for your specific application, we invite you to contact us for further discussion. Our team of experts is ready to provide you with detailed product information and technical support to help you make the best choice for your project.
References
- "Polyurethane Handbook" by G. Oertel
- "Polymer Science and Engineering" by Donald R. Paul and L. H. Sperling
- Industry reports on polyurethane film production and applications.
